Barefoot Sound Footprint02 (pair)

RM16,312.00

Available on backorder

Price is for one pair of speakers

*Delivery will occur in a week, barring any unforeseen circumstances that might cause delays.





Uncompromised Audio Excellence and Design

Barefoot Sound found the perfect balance with the introduction of the Footprint01, the first in a new line of active 3-way speakers tailored for today’s evolving production workflows. Recording engineers, producers, composers, musicians, beat-makers, and post-production professionals quickly appreciated its blend of high-end sonic character and design — hallmarks of Barefoot Sound’s premium studio monitors — delivered in a more compact and affordable package.

The Footprint02, the second model in the Footprint line, builds on this foundation with a smaller footprint and an even more accessible price, while maintaining the same uncompromising audio quality and design as the Footprint01. These two models share more than just aesthetics — they both incorporate Barefoot’s signature innovations, including Dual-Force™ opposing subwoofers, dual-ring radiator tweeters, and Multi-Emphasis Monitor Emulation™ (MEME) technology, originally featured in the flagship MicroMain and MiniMain series.

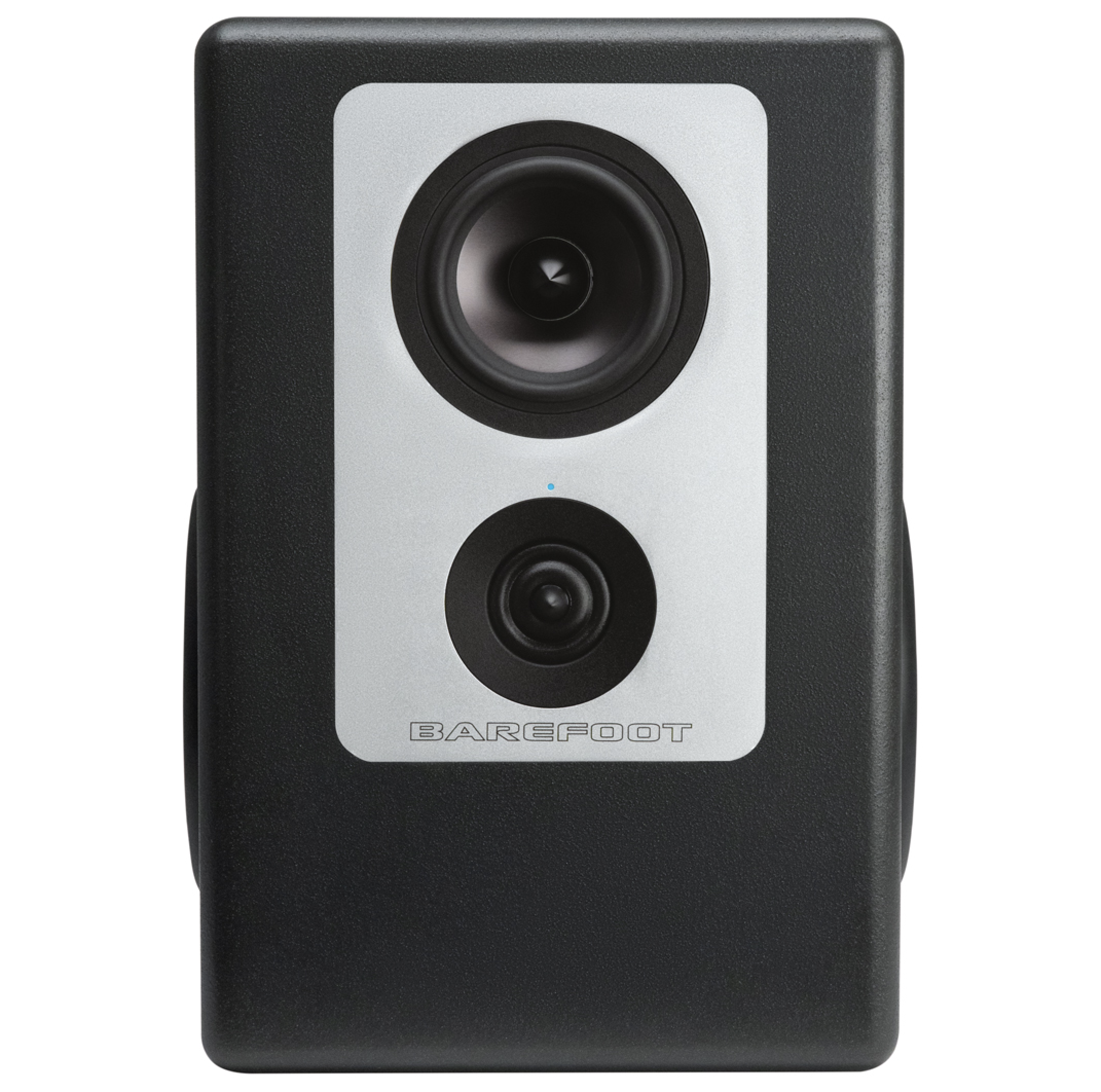

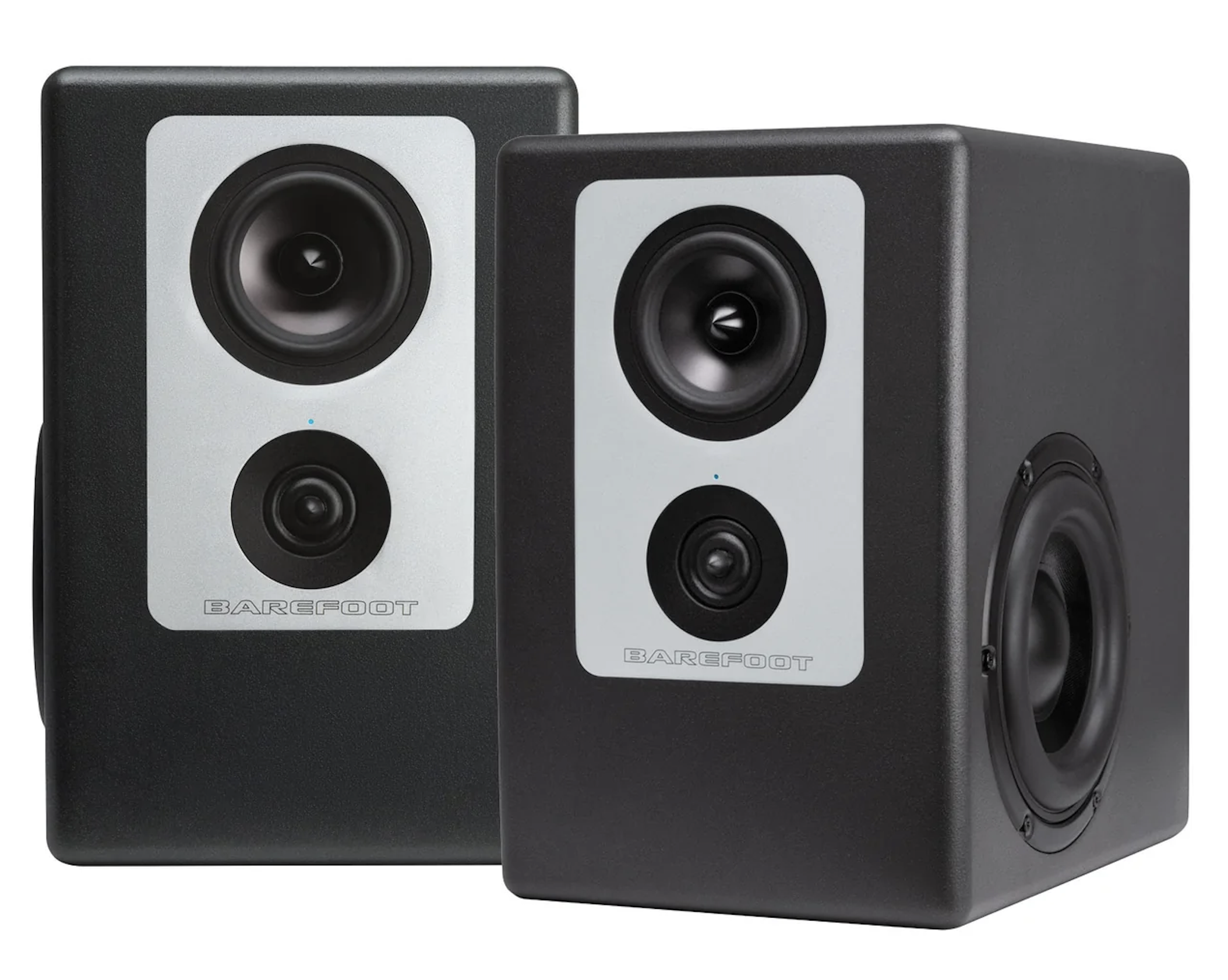

The Footprint02 mirrors the Footprint01 with side-mounted, dual opposing paper-cone subwoofers, a dual-ring radiator tweeter, and an aluminum-cone midrange driver housed in an aluminum front sub-baffle. Its sleek design, with rounded corners and edges, minimises cabinet diffraction for cleaner sound. The front baffle features Barefoot’s distinctive speaker configuration, with the tweeter positioned below the midrange woofer — an unconventional geometry that enhances acoustic focus at the center of the cabinet.

Internally, the Footprint02 is nearly identical to its larger sibling. It features a 2-way DSP crossover and dual Class D amplifier modules, optimised for its reduced cabinet size, which is approximately 60% of the Footprint01’s volume. Its dual opposing 6.5-inch subwoofers deliver deep, extended bass, making the Footprint02 a powerhouse in a compact form. Despite its size, the Footprint02 embodies all the hallmarks of Barefoot Sound — exemplary sound quality, 3D imaging, and a wide dynamic range.

Under The Hood

Dual-Force™ is a core Barefoot technology that places two subwoofers in opposition to each other, effectively canceling out cabinet vibrations at the source. This design ensures that the only sound heard comes from the drivers, not the cabinet, resulting in a cleaner and more accurate bass response.

Another key innovation is the dual-ring radiator tweeter. As high-frequency wavelengths approach the diameter of a typical tweeter diaphragm, sound dispersion narrows, negatively impacting imaging. Barefoot’s design solves this by combining a center waveguide with the dual-ring tweeter, ensuring a wider, more consistent high-frequency dispersion at the listening position.

Barefoot’s Multi-Emphasis Monitor Emulation™ (MEME) technology adds versatility to the Footprint02, making it adaptable to a variety of environments, including playback rooms, mobile setups, home studios, and professional production spaces. MEME provides true emulations of iconic speakers, including mix cubes, the renowned white-coned studio monitors, and consumer hi-fi speakers. This allows users to reference multiple monitor types with the flick of a switch—no need for a cluttered bridge filled with multiple monitors.

Features

• 3-way active monitor
• 350 watts of power per monitor
• Frequency Response: 42 Hz – 45 kHz
• MAX SPL: Continuous 110dB
• Crossover Frequencies 180 / 3600
• 6.5″ Dual-Force™ woofers
• 4″ midrange driver
• 1″ ring radiator tweeter
• MEME™ Technology Voice Emulation
• Dual-Force™ Technology
• Dimensions 308 x 222 x 330 mm (12.12″ x 8.7″ x 13.0″)

Specifications

Frequency Response: 42Hz – 45kHz (±3dB), 52Hz – 40kHz (±1dB)
Bass Response: -3 dB @ 42Hz, Q = 0.707
Slope = 18 dB/octave asymptotic
Cabinet: 13 liters total internal volume, Sealed woofer and midrange enclosures, Machined aluminum baffle plate, Acoustic damping throughout
Crossover Frequencies: 180 / 3600 Hz (Passive crossover between Midrange and Tweeter)
Tweeter: 1″ ring radiator, Low distortion motor, Rear waveguide chamber
Midrange: 4.0″ aluminum cone, Aluminum phase plug, Low distortion motor
Woofers: 6.5″ paper composite cone, low distortion motor, Dual-Force™
High Frequency Amplifier: 150W
Low Frequency Amplifier: 200W
AC Power Input: 85 VAC to 265 VAC
Power Consumption: Idle: 14W, Maximum: 400W
Weight: Speaker:12.7 kg
Shipping:15.3 kg
Dimensions HxWxD: Cabinet: 12.12 x 8.7 x 13.0 inches (308 x 222 x 330 mm)
Overall: 12.12 x 9.50 x 13.6 inches (308 x 241 x 330 mm)
*Pre-orders are non-cancelable, so please ensure the item you’re ordering is correct.
