SPL Phonitor 3 DAC

*Special Order



Boutique headphone amplifier, monitor controller, and DAC with SPL’s renowned 120V Technology

The perfect monitoring centerpiece for demanding producers as well as sound and mastering engineers working with digital sources or in the DAW.

Whether if USB, AES/EBU or S/PDIF – the integrated DAC with analog SLP120 converts digital PCM audio signals with a resolution of 32 bit and a sampling rate of up to 768 kHz. It converts DSD signals with a resolution of up to DSD256.

On the analog side, the Phonitor 3 DAC, based on the SPL 120V technology, offers the same monitoring quality as the big SPL mastering consoles – on loudspeakers and headphones. The analog Phonitor Matrix allows mixing and mastering on headphones in the highest quality – with the same spatial perception of the stereo stage as on loudspeakers.



Great sound – for headphones

The Phonitor 3 DAC offers connection for a standard headphone with a stereo jack plug on the front. Thanks to the enormous output power, all kind of headphones are driven effortlessly. Thus, it plays out the advantages of the SPL 120V technology and rewards the listener with an honest, detailed and at the same time vivid sound experience.



Great sound – also for loudspeakers

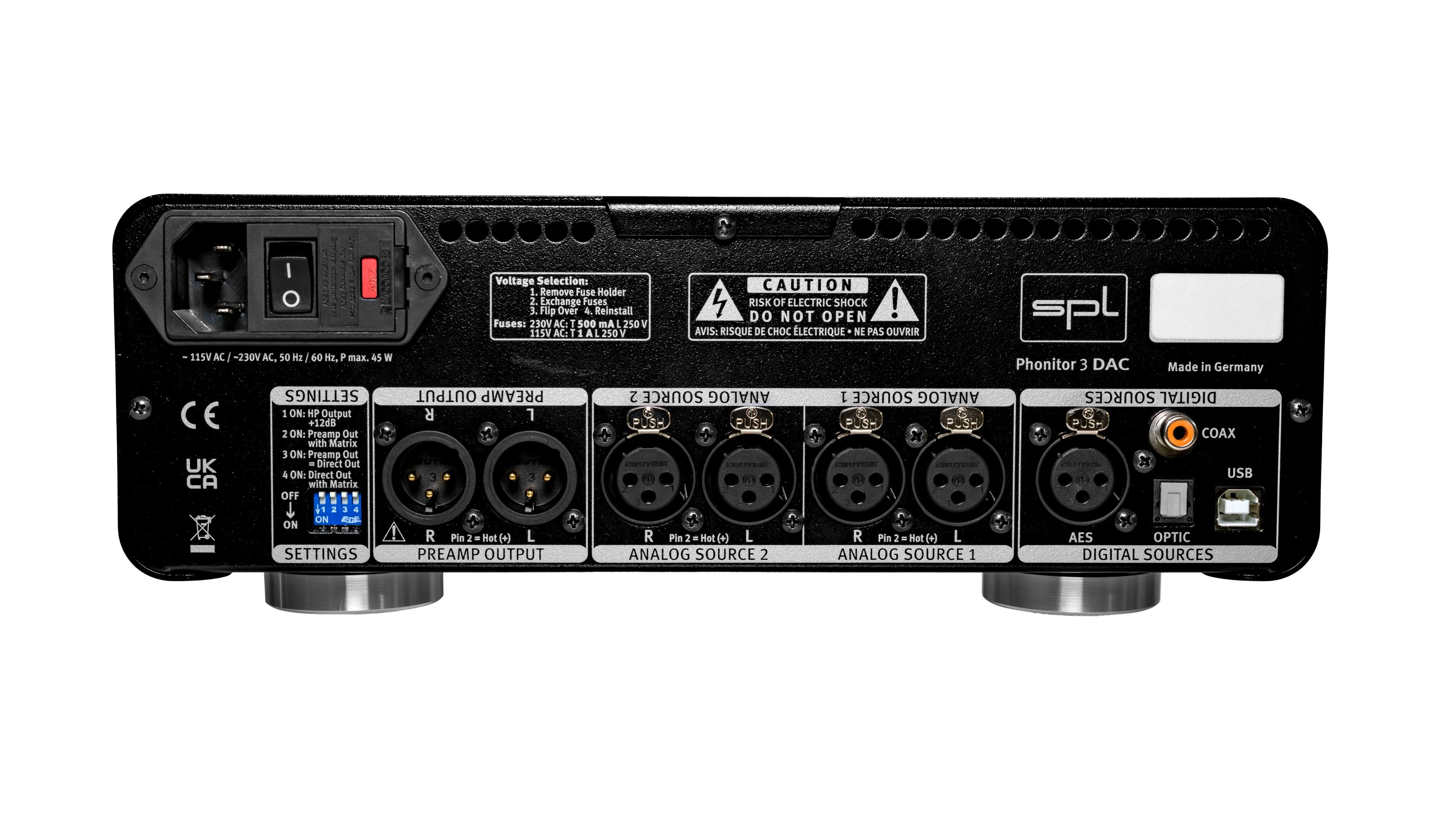

On the rear of the device, Phonitor 3 DAC offers a stereo output which makes it a high-quality monitoring controller for any monitoring situation. Active speakers with an integrated power amplifier or passive speakers in combination with a power amplifier can be connected at this output.



Monitoring at the highest level

Phonitor 3 DAC offers the same key technology – SPL 120V technology – and signal quality as the big SPL DMC and MMC mastering consoles.



Headphones or Speakers

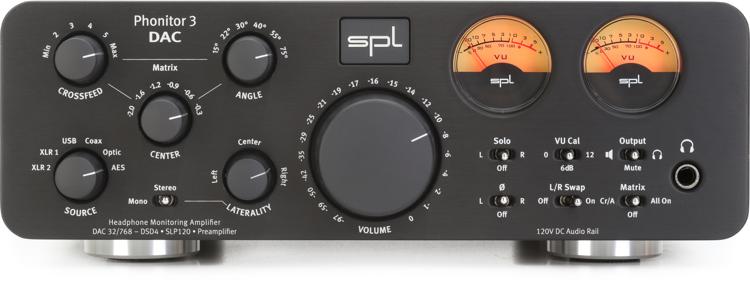

The Output switch – simply switch from headphone to speaker playback. In the center position (Mute), no signal reaches the outputs. The VU meters light up red.



The DAC – the best is just good enough

The converter chip in the Phonitor 3 DAC´s digital-to-analog converter is the highly acclaimed AKM AK4490 Velvet Sound™ premium DAC chip, which thanks to its architecture reproduces the finest sound details. It converts PCM audio at 32-bit resolution and a sampling rate of up to 768 kHz, which is 16 times the resolution of a CD. Direct Stream Digital is also supported up to a resolution of DSD4 or DSD256.



SLP120

The analog output of any DAC chip must be filtered by a low pass filter when entering the analog world. In contrast to all other DACs in the world, the low pass filters here are built using SPL 120V technology, which provides a plus in dynamics and headroom and sound. The DAC in the Phonitor 3 DAC is equipped with the SLP120 – an analog “single low pass” filter with 120V technology.



The Revolution: Phonitor Matrix

One of the unique features of SPL headphone amplifiers is the SPL Phonitor Matrix. It enables mixing and mastering engineers to create perfect mixes on headphones, which will translate perfectly to all types of stereo speaker systems.

But the Phonitor Matrix is not only designed for professional use in the studio. It also enables the hifi enthusiast to enjoy music on headphones, like if it was played back on speakers.
